Dynamically Re-writing log lines for standardisation#

Imagine a new starter joins the development team.

They are informed of the team standards - that logs with userTier=... are required to make the Observability system work.

However, they forget and so write their logs with user.tier=... instead.

Question

Can the OpenTelemetry collector fix this?

Yes! The transform processor can be used to rewrite the log line in real time so user.tier becomes userTier with this statement:

replace_pattern(body, "user.tier=", "userTier=")

scenario7.yaml shows the OpenTelemetry collector configuration to achieve this.

Stop Previous Collector#

If you haven't done so already, stop the previous collector process by pressing Ctrl + C.

Start Collector#

Run the following command to start the collector:

/workspaces/$RepositoryName/dynatrace-otel-collector --config=/workspaces/$RepositoryName/scenario7.yaml

Generate Log Data#

Open file.log file and add this line then save the file.

My seventh dummy log line from userId=4321 part of user.tier=tier3

Verify Debug Data in Collector Output#

View the collector terminal window and verify two things:

  • user.tier piece has been rewritten to userTier
  • support.tier attribute has been added due to userTier being present in the log content
...
Body: Str(My seventh dummy log line from userId=4321 part of userTier=tier3)
Attributes:
     ...
     -> support.tier: Str(bronze)
...

View Data in Dynatrace#

Tip

Right click and "open image in new tab" to see large image

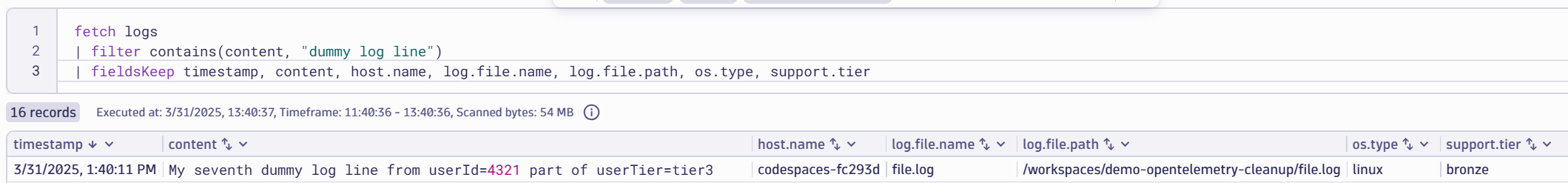

scenario7 dynatrace results

There are a lot of columns shown so either scroll all the way to the right to see the support.tier column.

Or cleanup the columns by choosing to keep only certain columns:

fetch logs
| filter contains(content, "dummy log line")
| fieldsKeep timestamp, content, host.name, log.file.name, log.file.path, os.type, support.tier

Click the Run button again on the DQL tile. You should see the new data.

Congratulations! You can now add any important Key/Value information as logs flow through the collector.
