6. Introduce System Change

The application is running correctly. It is time to introduce a change into the system.

This simulates releasing new functionality to your users in production.

Inform Dynatrace#

First, inform Dynatrace that a change is about to occur. Namely, you are going to make a change to the cart service by changing the cartFailure feature flag from off to on.

Tell Dynatrace about the upcoming change by sending an event (note: This event does not actually make the change; you will do this manually in the following step).

Run the following:

./runtimeChange.sh cart cartFailure on

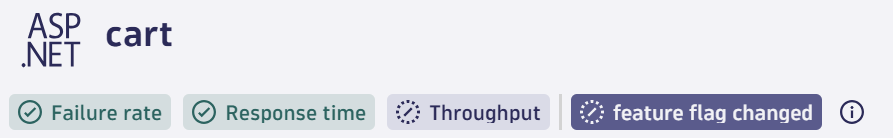

You should see this event appear on the cart service screen:

cart event

Make Change#

Open this file: flags.yaml

Change the defaultValue of cartFailure from "off" to "on" (scroll to line 69)

feature flag YAML

Now apply the change by running this command:

kubectl apply -f $CODESPACE_VSCODE_FOLDER/flags.yaml

You should see:

configmap/flagd-config configured

Restart Flagd#

Normally flagd can detect changes to files in realtime, but in some environments (due to the underlying operating system's ability to watch and notify on file changes) this sometimes does not work as intended.

To be sure that the new value of off is used, restart flagd now:

kubectl scale deploy flagd --replicas=0

Wait until the flagd pod disappears from the list when you run this command (in our resource constrained environment this take 30s - 1min). Re-run the get pods command until you see it disappear:

kubectl get pods

Now scale flagd back up:

kubectl scale deploy flagd --replicas=1

Be Patient

The application will now generate errors when emptying the users cart. It will do this 1/10th of the time, so be patient, it can take a few moments for the errors to occur.

Generate Your Own Traffic#

There is a load generator running, but you can generate traffic by accessing the site.

See access user interface

Repeatedly add an item to your cart, go to the cart and empty it. Hope you're "lucky" that you generate a backend failure.

Wait for Error Logs#

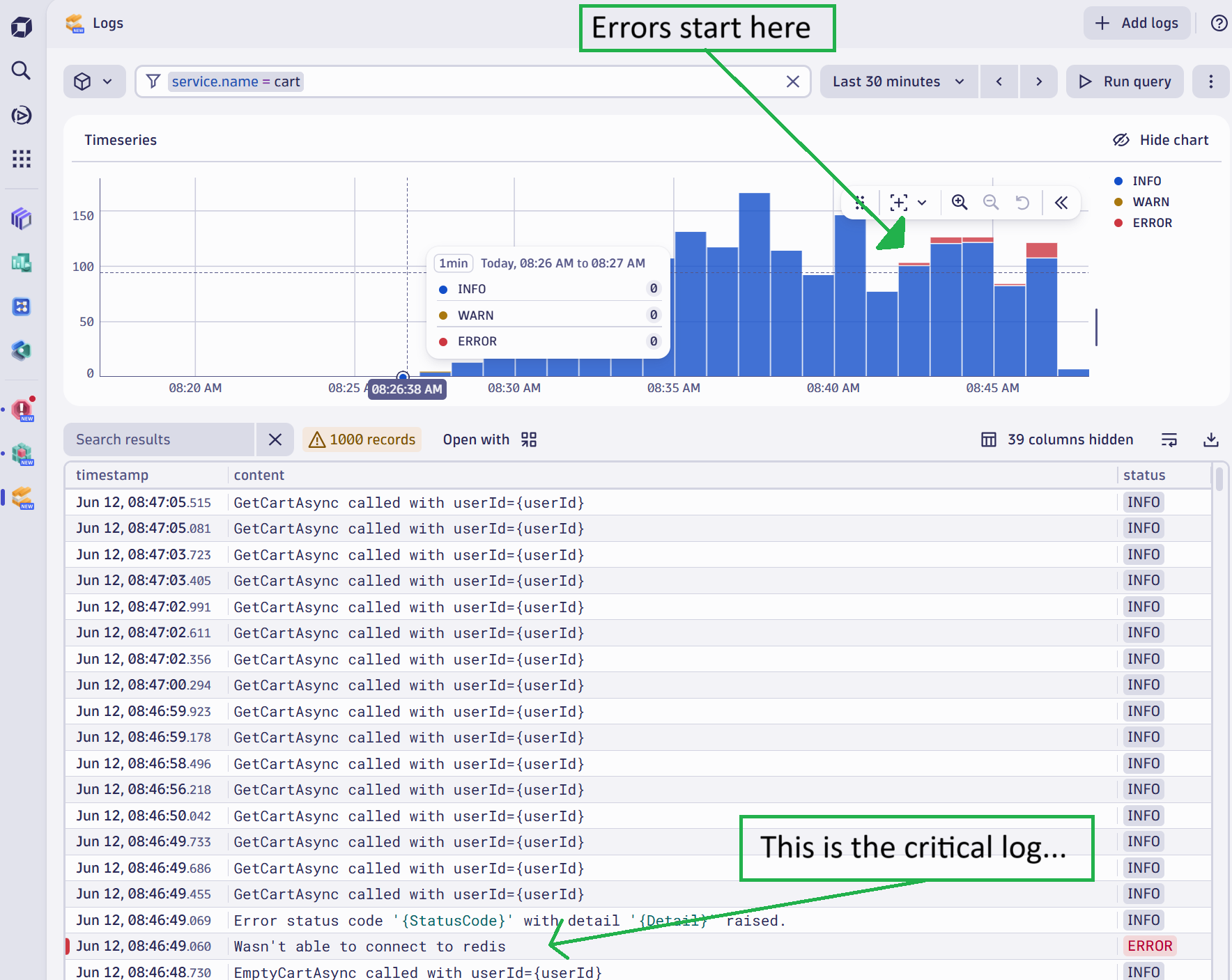

Use the Logs app and wait until you see ERROR logs appear.

errors in logs app

Open Problems App#

In Dynatrace:

  • Press ctrl + k. Search for problems
  • Open the problems app

Wait for the problem to appear.

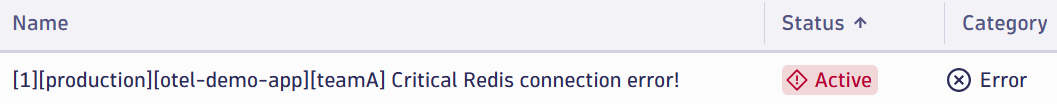

problem snippet

You can also open the cart Service screen to monitor for failures.

  • Press ctrl + k. Search for Services
  • Open the services app + navigate to the cart
  • Monitor the Failed requests chart
